millmeist

  • Pharmaceuticals Foods Other Milling

    Application

    • Pharmaceutical industry
      • Pre-tableting granules, capsule filling granules, supplements


    This sizing machine has tilt shaft that causes no powder buildup.
    The disadvantages of the top drive are eliminated by tilting the shaft.
    A vertical type is also available.

FEATURE

    • The industry-first “tilt drive”
    • Sizing vanes (impellers, blades) can be selected
    • The sizing section can be easily replaced without need for tools.

Adoption of the industry’s first “tilt drive”

With no drive shaft at the bottom of the screen in combination with the large-diameter discharging port, no powder buildup occurs. High production efficiency is realized.
The obstacle-free large-diameter feeding port enables smooth processing of large lumps.

High washability and safety

Due to its simple mechanism, the powder contact parts can be washed easily and thoroughly.
The rotating section is air-purged and oil-sealed in combination. The oil seal will not deteriorate by washing water.
It is capable of containment and explosion protection, etc. (optional)

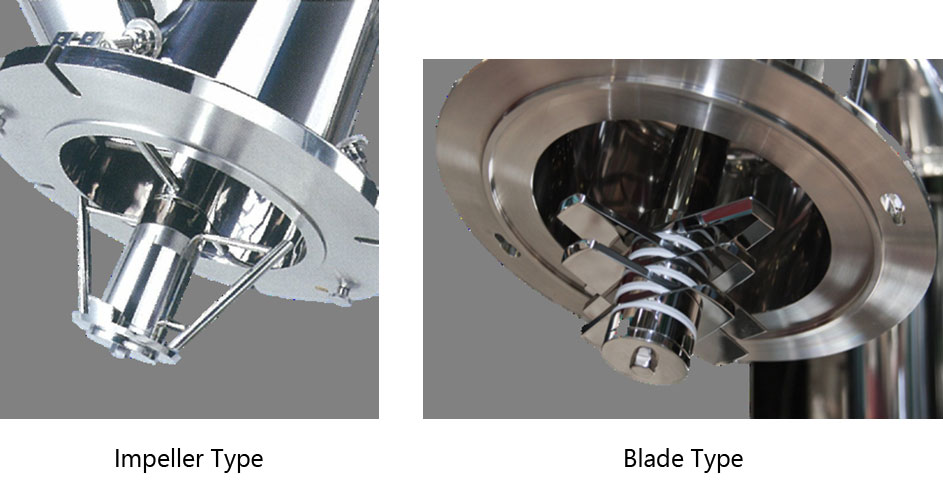

Adoption of two types of sizing vanes

According to application, impeller type and blade type can be selected to meet a wide range of products.
