FLO-COATER® HIGH SPEED MODEL

  • Pharmaceuticals Foods Other Granulation Drying Fine particle coating

    Application

    • Pharmaceutical industry
      • Granules for tableting, capsule filling granules

      Food industry
      • Supplements, instant foods,spices, condiments, synthetic sweeteners, teas, protein, green juice, etc.

      Chemical industry (other)

    Innovative manufacturing process for fluidized bed equipment.

FEATURE

    • New granulation process that optimizes the balance between granulation moisture and drying
    • Realizes an ideal air flow that greatly improves mixing
    • Equipped with a large-capacity high-performance spray gun that significantly reduces spraying process time

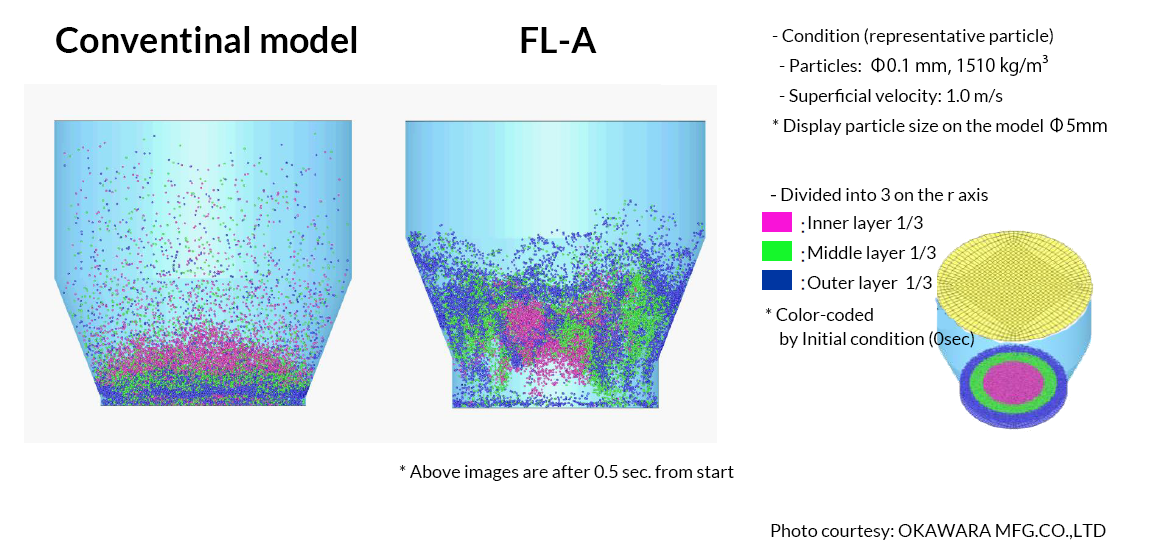

A uniform air flow is created through the use of the flow velocity maintenance section and the fluidizing air dispersion plate to improve the agitating and mixing performance.

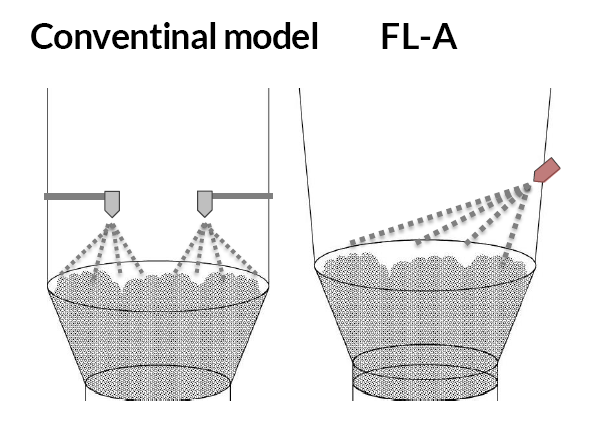

Newly adopted high-capacity spray gun

Since the spray gun is installed on the device wall, no piping is exposed inside the device and the number of spray guns itself can be reduced, which facilitates maintenance.

Optimization of balance between granulation moisture and drying

When water is added by a large volumetric binder solution, it is adjusted to an appropriate granulation moisture range by improving the agitating and mixing performance and an appropriate amount of drying air (high-temperature air supply), which enables short-time granulation while suppressing the generation of coarse particles.

Approximately 2.5-fold productivity

If the production time is shortened by 60%, the productivity increases about 2.5-fold.
* The above time is calculated by standard formulation.

[Formulation] Lactose/cornstarch=7:3
[Spray solution] 7%HPC-L aqueous solution
